Brand Name : HY
Certification : ISO9001:2008
Place of Origin : China
MOQ : 1 tons
Price : Negotiation
Payment Terms : T/T, L/C
Supply Ability : 30tons a day
Delivery Time : 30days
Packaging Details : Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Name : Non-quenched and tempered steel rod
Material : Non-quenched and tempered steel
Diameter : 35mm - 140mm
Surface treatment : Chrome plated
Tensile strength : Not less than 750 Mpa
Yield strength : Not less than 520 Mpa
Non - Quenched And Tempered Steel Hydraulic Cylinder Rod Chrome Plated
Product Description
1. Non-quenched and tempered steel products is used in mechanical manufacturing for the directly
turning part of shaft and rod, ect.
2. Save manufacturing expenses and avoid waste in the tempering process.
3. Shortened processing periods, enhance productivity and reduce the occupied capital.
4. Low processing cost, needless quenched and tempered process and the second turning.
5. The steel directly turning saves the logistics cost.
6. Stable and uniform mechanical properties.
Detailed Description
1. MATERIAL: HY4700, HY4520
2. CHEMICAL COMPOSITION(%)
Material | C% | Mn% | Si% | S% | P% | V% | Ni | Cr% | Mo | Cu |
HY4700 | 0.38-0.45 | 1.20 ~1.60 | 0.30~0.50 | ≤0.035 | ≤0.020 | 0.05~0.15 | ≤0.25 | 0.10~0.20 | ≤0.15 | 0.25 |
HY4520 | 0.40 ~0.48 | 0.80 ~1.40 | 0.15 ~0.35 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 | ≤0.15 | ≤0.25 |
3. MECHANICAL PROPERTIES
Material | MECHANICAL PROPERTIES | Surface hardness(HBW) | |||||
Rm(MPa) | Rel(MPa) | A% | Z% | KU2(J) |
| ||
HY4700 | Φ35 - Φ100 | 900 - 1100 | ≥650 | ≥16 | ≥35 | ≥39 | 270-340 |
>Φ100 - Φ140 | 850 - 950 | ≥600 | ≥16 | ≥35 | ≥39 | 270-340 | |
HY4520 | Φ40 - Φ100 | 750 - 900 | ≥520 | ≥19 | ≥40 | ≥39 | 230-290 |
>Φ100~Φ140 | 750 - 900 | ≥520 | ≥17 | ≥35 | ≥39 | 230-290 | |
|
|
|
|
|
|
|
|
4. SUPPLY CONDITION
Ground and chrome plated
5. CHROME THICKNESS
20 to 30 micron
6. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micron
7. TOLERANCES ON DIA
ISO f7 on the diameter
8.OVALITY
Half of the tolerance ISO f7
9. STRAIGHTNESS
≤0.2MM/M
10 .SURFACE HARDNESS
850-1150HV (vickers 100g)
11. COHESION
No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees
and cooling in water)
12 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
13. WELDABILITY
Good
14. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10
15. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
All certificate related with material heat treatment and plating is required

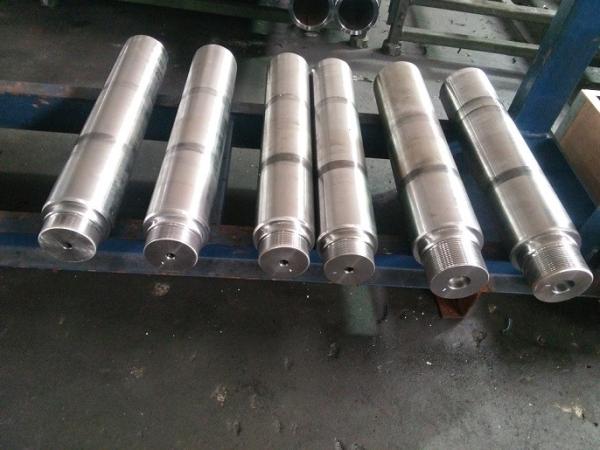

Non - Quenched And Tempered Steel Hydraulic Cylinder Rod Chrome Plated Images |
